10‘’ AC Exhuast fan W/Humidity sensor

MINCENSIN has been designing and manufacturing reliable bathroom exhaust fans for commercial and residential projects across North America.

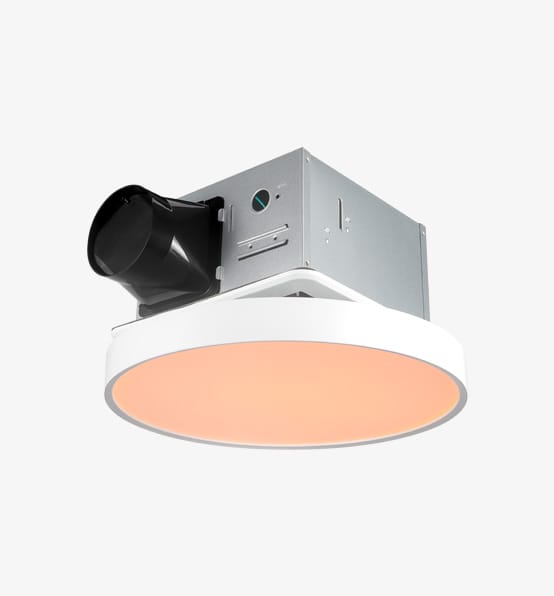

bathroom exhaust fan with light quiet

exhaust fan W/Humidity sensor

10″ AC exhaust fan ​W/Humidity

This decorative bath exhaust fan with humidity sensor features an RGB Virtual Skylight optical system that replicates natural daylight ambiance, with remote color tuning and seamless dimming. The built-in smart sensor automatically detects moisture levels and activates 100 CFM airflow while operating ultra-quietly (<1 sone). Designed as an all-in-one ventilation and lighting solution, it meets residential and commercial demands for energy efficiency (25W), silent performance, and modern aesthetics.

AIRFLOW: 100 CFM

SOUND: <1 SONE

OEM/ODM Customization
Appearance & Structural Customization
Special Parameter Customization

Request a Quote OR 💬 CHAT with us live in the bottom right corner

Click to Request a Quote
etl certification

ETL Certified

Leveraging our mature product portfolio and compliance expertise, we can assist you in submitting a standalone ETL certification application under your brand.
csa certification

cSA Certified

MINCENSIN bathroom ventilation exhaust fan comply with CSA certification requirements, meeting the electrical safety standards for Canadian market.
hvi certification

HVI Certified

MINCENSIN offers products that have obtained HVI certification. Key performance indicators such as airflow rate and noise level meet the selection criteria for residential in North America.
energy star certification

ENERGY STAR® Certified

Based on our existing testing and certification foundation, we can support you in applying separately for ENERGY STAR, AHRI and JA8 certifications.

MINCENSIN offers a unique set of two modules that allow you to further customize your fan

MINCENSIN provides reliable bathroom exhaust fan solutions for online brands and major retail chains alike.

sensor exhaust fan bathroom
Humidity Sensor + Delay Timer

Advanced sensor technology automatically activates the device when humidity reaches the set level. The delay timer then turns the fan off automatically after the user-defined period, once humidity returns to normal levels.

bathroom exhaust fan with timer
Delay Timer

Supports delay-off settings ranging from 5 to 60 minutes. The fan will automatically shut off after the preset duration, eliminating the need for manual operation.

bathroom exhaust fan with motion sensor night light
Motion Sensor

When someone enters the room, the sensor automatically activates and turns on the exhaust fan. When no movement is detected, the fan will automatically turn off after approximately 3 minutes.

Features

Adjustable humidity threshold from 10% to 100%; automatically activates when humidity reaches the preset level, making it one of the best bathroom exhaust fans for humidity control.
Decorative bath exhaust fan design with a modern-style grille and Virtual Skylight RGB lighting that creates a natural daylight atmosphere.
Ultra-quiet operation, noise below 1 sone, even when installed as an exhaust fan in shower area.
Exhaust fan high CFM performance delivers 100 CFM of efficient airflow via an optimized centrifugal impeller and vortex airflow duct.
Ball-bearing motor rated for 50,000 hours of life, with built-in thermal fuse protection.

Requirements and Standards

ETL Safety Listed & HVI Performance Certified.
Compliant with North American Standards.
Full certification support for CSA, ENERGY STAR and more.

Construction

Galvanized steel housing resists rust in humid environments.
Removable 4-inch duct connector with backdraft damper for rain and wind protection.
UV-resistant ABS grille with a clean and attractive appearance.

Motor/Blower

Ball-bearing motor with 100% pure copper windings and silicon steel stator, rated for a 50,000-hour lifespan.
No. 45 carbon steel precision shaft passes 100% concentricity testing.
Built-in overheat protection fuse prevents failures caused by excessive heat.

Lighting

Virtual Skylight function: precisely controls red, green, blue, white, and yellow colors, allowing the lighting to realistically reproduce sky tones.
Five color temperature options: 2700K / 3000K / 3500K / 4000K / 5000K
Seamless dimming: 10%–100% brightness adjustment.

Humidity Sensing

Humidity threshold trigger point adjustable from 10%–100% via threshold dial.
The exhaust fan automatically activates when room humidity reaches the set threshold.

Installation Guide
Specification Sheet
SpecificationsParameters
Model No.PAC-00210X25 W/humidity Sensor-CL2
Air Volume (CFM)100
Power Rating (V/Hz)120V/60Hz
Noise (sones)<1 sone
Watts25 W
Motor TypeAC Motor
Thermal Fuse ProtectionYes
LED Panel Size (inches)15 1/10″*15 1/10″
Lamp Watts15 W
Color Temperature (5CCT)2700K-5000K
Lumens (lm)1000LM
CRIRa90
Housing Size9 1/10″*9 1/10″*5 5/6″
Rated Life (hours)50000H
Duct Diameter (inches)4″
CeritificationETL, HVI
Humidity+Delay TimerYes
