10‘’ AC Exhuast fan W/Humidity sensor

MINCENSIN has been designing and manufacturing reliable bathroom exhaust fans for commercial and residential projects across North America.

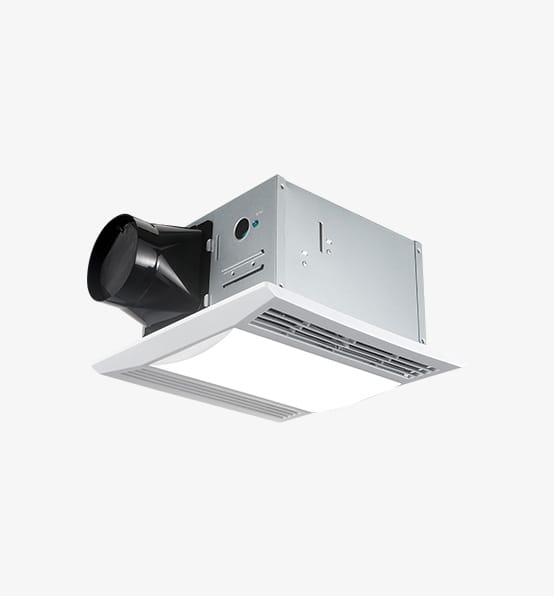

Best Bathroom Exhaust Fans With Lights

exhaust fan W/Humidity sensor

10″ AC exhaust fan ​W/Humidity

This bathroom exhaust fan with humidity sensor and light features a rectangular LED light panel with 5CCT functionality, offering a modern decorative touch. It includes built-in intelligent humidity sensing that automatically turns the fan on or off based on ambient humidity levels. ETL/HVI certification ensures safety and reliability, making it an ideal integrated solution for ventilation and lighting.

AIRFLOW: 100 CFM

SOUND: <1 SONE

OEM/ODM Customization
Appearance & Structural Customization
Special Parameter Customization

Request a Quote OR 💬 CHAT with us live in the bottom right corner

Click to Request a Quote
etl certification

ETL Certified

Leveraging our mature product portfolio and compliance expertise, we can assist you in submitting a standalone ETL certification application under your brand.
csa certification

cSA Certified

MINCENSIN bathroom ventilation exhaust fan comply with CSA certification requirements, meeting the electrical safety standards for Canadian market.
hvi certification

HVI Certified

MINCENSIN offers products that have obtained HVI certification. Key performance indicators such as airflow rate and noise level meet the selection criteria for residential in North America.
energy star certification

ENERGY STAR® Certified

Based on our existing testing and certification foundation, we can support you in applying separately for ENERGY STAR, AHRI and JA8 certifications.
Features
Built-in humidity sensor automatically activates the bathroom exhaust fan with LED light and humidity sensor when preset moisture levels are reached.
Ultra-quiet operation below 1 sone, suitable for continuous use, even at night.
Stable 100 CFM airflow designed for balanced performance in ventilation and exhaust fans applications.
Integrated 15W LED light delivers 1000 lumens for efficient, comfortable illumination.
Compact housing supports standard North American ceiling layouts and simplifies sizing exhaust fans for projects.
Specifications
Airflow: 100 CFM
Input Voltage: 120V / 60Hz
Duct Diameter: 4″
Installation Dimensions (in.): 9.45″ × 9.45″
Product Dimensions: 12.28″ × 12.28″ × 7.09″
Requirements and Standards
ETL Certified
HVI Certified
Housing
Heavy-duty galvanized steel housing provides long-term structural stability for ceiling-mounted installations.
Removable 4″ duct connector allows easy installation and future maintenance.
Integrated L-shaped mounting bracket supports both new construction and retrofit applications.
Supplied with a complete installation manual to support fast installation and standardized project delivery.
Motor/Blower
AC ball bearing motor designed for a service life of up to 50,000 hours.
Built with 100% copper windings and high-quality silicon steel laminations for consistent efficiency and reduced heat generation.
Motor shaft made from 45# steel and verified through 100% concentricity testing to minimize vibration and noise.
Equipped with built-in thermal protection and backed by a 3-year warranty.
Grille
Modern Square Design with clean lines and flush-mount finish for seamless integration into ceilings.
Made from imported high-grade UV-resistant ABS plastic, resistant to fading, yellowing, and environmental degradation.
Spring clip mounting system allows quick removal and reinstallation—ideal for maintenance or cleaning.
Available in customizable finishes upon request to match architectural or interior design preferences.
Sleek, low-profile appearance enhances aesthetic appeal while maintaining functional performance.
Lighting
Smooth 10%–100% continuous dimming for flexible lighting control.
5CCT selectable color temperatures: 2700K / 3000K / 3500K / 4000K / 5000K.
Rated LED lifespan of 50,000 hours, significantly reducing maintenance frequency.
Humidity Sensor
Rotary dial humidity adjustment with a configurable range of 10%–100% RH.
The fan automatically turns on when the ambient humidity reaches the selected level, providing timely moisture removal.
Optional 10–60 minute delay-off function continues ventilation after humidity levels return to normal, enhancing overall drying performance.
Installation Guide
Specification Sheet
SpecificationsParameters
Model NumberPAC-00210X25 W/Humidity sensor-SL3
Airflow (CFM)100
Input Voltage120V/60Hz
Noise (sones)<1 sone
Wattage (W)25W
Type of Motor BearingBall Bearing Motor
Thermal Fuse ProtectionYes
Product Dimensions12.28”*12.28”*7.09”
Housing Size9.1″*9.1″
Lamp Watts15W
Lumens (lm)1000LM
Color Rendering IndexRa90
Color Temperature2700K/3000K/3500K/4000K/5000K
Rated Life (hours)50000H
Duct Diameter4″
CeritificationETL, HVI
Installation Dimensions (in.)9.45″*9.45″
