MINCENSIN has been designing and manufacturing reliable bathroom exhaust fans for commercial and residential projects across North America.
exhaust fan W/Humidity sensor

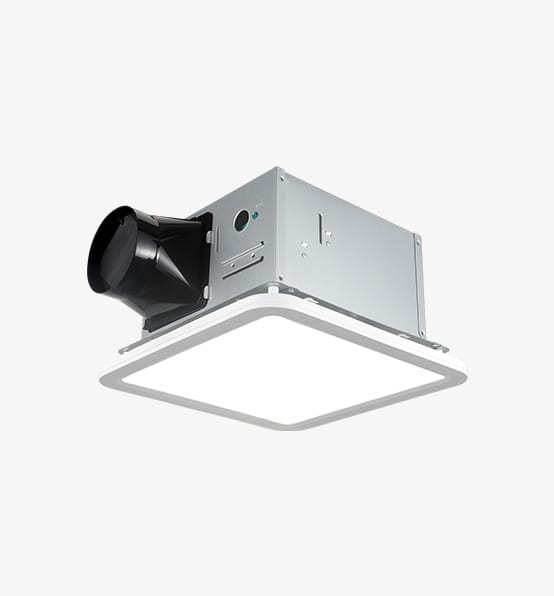

10″ AC exhaust fan W/Humidity
This bathroom exhaust fan with humidity sensor and light features a high-sensitivity humidity sensor that automatically turns on when humidity rises and shuts off once levels return to normal. It also includes a bright 15W LED light for even bathroom illumination, supports timer functions, and can be expanded with up to three customizable modules.
AIRFLOW: 100 CFM
SOUND: <1 SONE
OEM/ODM Customization
Appearance & Structural Customization
Special Parameter Customization
Request a Quote OR 💬 CHAT with us live in the bottom right corner
Leveraging our mature product portfolio and compliance expertise, we can assist you in submitting a standalone ETL certification application under your brand.
cSA Certified
MINCENSIN bathroom ventilation exhaust fan comply with CSA certification requirements, meeting the electrical safety standards for Canadian market.
HVI Certified
MINCENSIN offers products that have obtained HVI certification. Key performance indicators such as airflow rate and noise level meet the selection criteria for residential in North America.
ENERGY STAR® Certified
Based on our existing testing and certification foundation, we can support you in applying separately for ENERGY STAR, AHRI and JA8 certifications.
This bathroom exhaust fan with light and humidity sensor allows precise humidity threshold adjustment from 10% to 100% via rotary knob, automatically activating ventilation once the set level is reached. Optional 10–60 minute delayed shut-off enables intelligent dehumidification without manual operation. Powered by a ball-bearing motor, this power ventilator exhaust fan delivers up to 100 CFM airflow with ultra-quiet operation below 1 sone. Optimized centrifugal impeller design ensures high static pressure airflow and silent performance, making it a reliable modern exhaust fan solution. Ultra-slim housing with an overall thickness of only 7.2 inches, ideal for narrow ceiling spaces. Spring-clip grille design enables 3-second quick removal for easy exhaust fan fixing and maintenance. Built-in backdraft damper at the duct connector prevents rainwater and strong airflow backflow. Low power consumption of 25W and a long-lasting 50,000-hour light source significantly reduce operating and maintenance costs for commercial projects.
Specifications
Installation Dimensions (in.): 9.45 in × 9.45 in Duct diameter: 4 in Input voltage: 120V / 60Hz Wattage (W): 25W
High-quality galvanized steel housing, corrosion-resistant and durable, suitable for high-humidity commercial environments. Detachable duct connector allows flexible duct layout and improves installation efficiency by 30%. L-shaped metal mounting bracket with detailed installation manual, compatible with standard 2×4 inch joist ceilings.
Motor
Ball-bearing motor with a lifespan of up to 50,000 hours. Motor shaft passes 100% concentricity testing for smooth, low-vibration operation. High-efficiency conductive design using 100% pure copper windings and premium silicon steel stator for excellent magnetic performance and low operating temperature. Built-in overheat protection with thermal fuse automatically cuts power during abnormal temperature rise to ensure safety.
Grille
Imported ABS grille with UV-resistant material that does not yellow over time. Spring-clip design allows tool-free removal and cleaning in just 3 seconds.
Impeller
Made of imported PP and fiberglass composite material for high rigidity and deformation resistance. 100% dynamically balanced to eliminate vibration and noise.
Lighting
10%–100% seamless dimming to suit different lighting scenarios. 5 CCT selectable color temperatures from 2700K (warm white) to 5000K (cool white). 15W LED panel light with 1000 lumens output and Ra90 high color rendering index.
Humidity Sensing
Rotary smart threshold adjustment with an adjustable humidity range of 10%–100%. The exhaust fan starts automatically when the set level is exceeded. ntelligent delayed shutoff supports a 10–60 minute delay, ensuring thorough dehumidification before automatically turning off and preventing frequent on/off cycling.
