MINCENSIN has been designing and manufacturing reliable bathroom exhaust fans for commercial and residential projects across North America.
AIRFLOW: 110/80/50 CFM
SOUND: <0.9 SONE
Request a Quote OR 💬 CHAT with us live in the bottom right corner
ETL Certified
cSA Certified
HVI Certified
Features
Operating at an ultra-quiet level below 0.9 sone, this is an ideal 12 exhaust fan for noise-sensitive spaces.
Integrated bluetooth speaker exhaust fan design allows clear and stable audio streaming directly from smartphones.
Three selectable airflow settings of 110 / 80 / 50 CFM to suit bathrooms of different sizes.
Modern square grille with a circular LED light ring, combining ventilation and illumination in a modern exhaust fan for bathroom.
High-efficiency DC motor design with power consumption as low as 4W.
Slim-profile housing with spring-clip grille for quick and easy installation.
Requirements & Standards
ETL certified for North American electrical safety, ensuring stable and secure operation.
HVI certified with third-party verified airflow, noise, and energy efficiency ratings.
Housing & Construction
Heavy-duty galvanized steel housing ensures long-term structural stability.
Detachable backdraft damper prevents airflow reversal, rain ingress, and external wind impact.
Optimized centrifugal airflow channel increases static pressure while reducing turbulence noise.
Supplied with L- brackets and clear installation instructions for North American ceilings.
Motor/Blower
High-performance brushless DC motor delivers smooth and reliable operation.
100% pure copper windings with premium silicon steel stator for high magnetic efficiency.
Built-in thermal and overheat protection ensure low operating temperature and extended service life.
panel

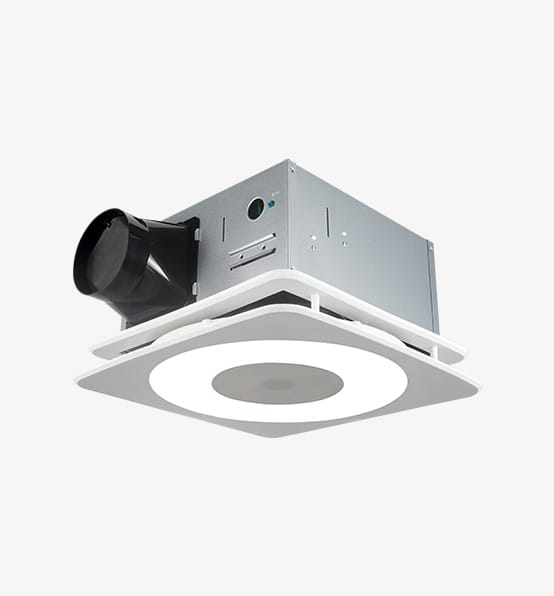

Square panel with a centered circular LED light ring for a clean, contemporary ceiling appearance.
Made from imported UV-resistant ABS, preventing yellowing over time.
Customizable panel design to meet project-specific decorative requirements.
Lighting
10%–100% seamless dimming for flexible lighting control.
5 selectable color temperatures from warm white to cool white, supporting diverse applications.
Functions as a high-performance led bathroom exhaust fan for modern interiors.
Bluetooth Speaker
Integrated Bluetooth audio module allows users to play music or podcasts directly from mobile devices.
Stable wireless connection with clear sound quality enhances everyday bathroom experience.
| Specifications | Parameters |
|---|---|
| Model No. | PDC-00112X10-CL1BMX |
| Air Volume (CFM) | 110/80/50 |
| Power Rating (V/Hz) | 120V/60Hz |
| Noise (sones) | <0.9 sone |
| Watts | 13W/7W/5W |
| Motor Type | DC Motor |
| Thermal Fuse Protection | Yes |
| LED Panel Size (inches) | 13 3/5″*13 3/5″ |
| Lamp Watts | 15 W |
| Color Temperature (5CCT) | 2700K-5000K |
| Lumens (lm) | 1000LM |
| CRI | Ra90 |
| Housing Size | 10 1/3″*10 1/3″*5 5/6″ |
| Rated Life (hours) | 50000H |
| Duct Diameter (inches) | 4″ |
| Ceritification | ETL, HVI |
| Bluetooth Speaker | Yes |
