8‘’ dC Exhuast fan W/RGB Light

MINCENSIN has been designing and manufacturing reliable bathroom exhaust fans for commercial and residential projects across North America.

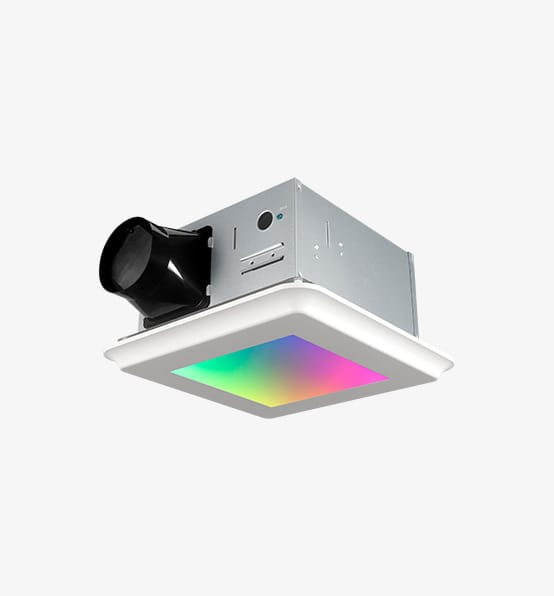

ceiling mount bathroom exhaust fan with led light

exhaust fan W/RGB Light

8″ dC exhaust fan ​W/RGB Light

Driven by a brushless DC motor, the bathroom exhaust fan offers three adjustable speed settings, delivering ultra-quiet ventilation even at high speed, making it the quietest exhaust fan ever produced. The included remote control allows for easy adjustment of fan speeds, light brightness, and color modes.

AIRFLOW: 100/80/50 CFM

SOUND: <1.5 SONE

OEM/ODM Customization
Appearance & Structural Customization
Special Parameter Customization

Request a Quote OR 💬 CHAT with us live in the bottom right corner

Click to Request a Quote
etl certification

ETL Certified

Leveraging our mature product portfolio and compliance expertise, we can assist you in submitting a standalone ETL certification application under your brand.
csa certification

cSA Certified

MINCENSIN bathroom ventilation exhaust fan comply with CSA certification requirements, meeting the electrical safety standards for Canadian market.
hvi certification

HVI Certified

MINCENSIN offers products that have obtained HVI certification. Key performance indicators such as airflow rate and noise level meet the selection criteria for residential in North America.
energy star certification

ENERGY STAR® Certified

Based on our existing testing and certification foundation, we can support you in applying separately for ENERGY STAR, AHRI and JA8 certifications.
Features
Powered by a high-efficiency brushless DC motor, this quietest exhaust fan delivers stable and powerful ventilation with exceptionally low noise, even during continuous operation.
Unlike traditional fans with single lighting functions, this model integrates RGB ambient lighting with primary illumination, offering multiple lighting modes for different moods.
Users can adjust the color, brightness, and dynamic effects of the lights using a remote control.
Supports seven RGB color modes along with gradient, flashing, and rhythm-responsive lighting effects to create a personalized bathroom atmosphere.
Features three selectable airflow settings of 50 / 80 / 100 CFM, ensuring effective moisture and odor removal while maintaining quiet performance.
With a noise level as low as 1.5 sones, it balances comfort and ventilation efficiency.
The main LED light supports adjustable color temperature and dimming, meeting both daily lighting and ambient lighting needs.
Specifications
Installation Dimensions (in.): 8.82″ × 8.82″ (ideal for 8inch by 8 inch exhaust fan applications)
Product Dimensions: 11″ × 11″ × 6.9″
Duct diameter: 4″
Input voltage: 120V / 60Hz
Wattage (W): 5W / 7W / 10W
Requirements and Standards
HVI performance certified
ETL safety certified
Housing
Constructed with a galvanized steel housing for enhanced corrosion resistance and long-term durability in humid environments.
The 4-inch duct connector includes a built-in backdraft damper to effectively prevent airflow reversal.
The fan comes pre-assembled with clear installation instructions and a complete hardware kit for fast and easy installation.
Motor/Blower
Equipped with an energy-efficient brushless DC motor designed for up to 50,000 hours of service life.
DIP-switch adjustable airflow allows easy selection between 50 / 80 / 100 CFM to suit various bathroom sizes.
Grille
Modern illuminated grille design complements a wide range of bathroom décor styles.
Spring-clip mounting system allows quick installation and easy removal for cleaning.
Lighting
Integrated 1000-lumen high-output LED provides bright, even illumination across the bathroom.
Selectable 5 CCT options: 2700K / 3000K / 3500K / 4000K / 5000K.
Supports smooth 10%–100% dimming control.
RGB ambient lighting offers 7 color modes to enhance visual depth and ambiance.
High color rendering index of CRI ≥ Ra90 ensures accurate and natural color appearance.
Installation Guide
Specification Sheet
SpecificationsParameters
Model NumberPDC-00108X10-SL1RGB
Airflow (CFM)100/80/50
Input Voltage120V/60Hz
Noise (sones)<1.5 sone
Wattage (W)10W/7W/5W
Type of Motor BearingBall Bearing Motor
Thermal Fuse ProtectionYes
Product Dimensions11″*11″*6.9″
Housing Size8.4″*8.4″
Lamp Watts15W
Lumens (lm)1000LM
Color Rendering IndexRa90
Color Temperature2700K/3000K/3500K/4000K/5000K
Rated Life (hours)50000H
Duct Diameter4″
CeritificationETL, HVI
Installation Dimensions (in.)8.82″*8.82″
